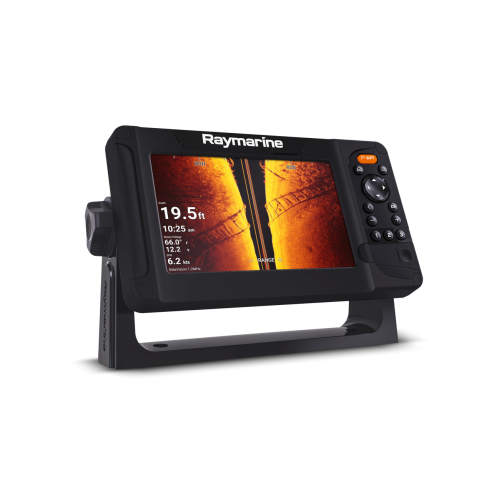

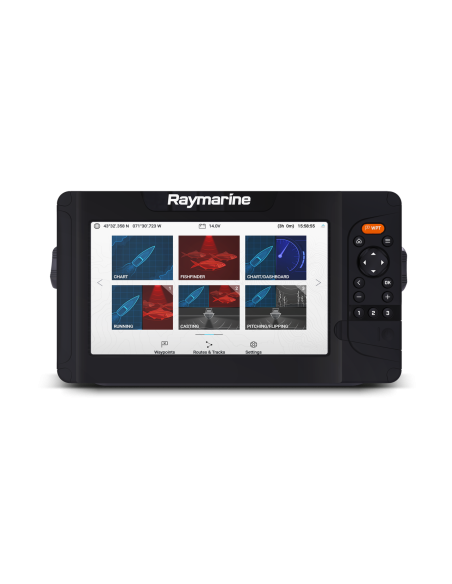

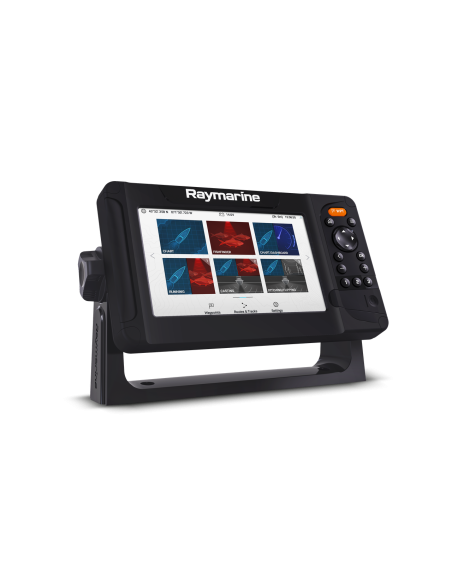

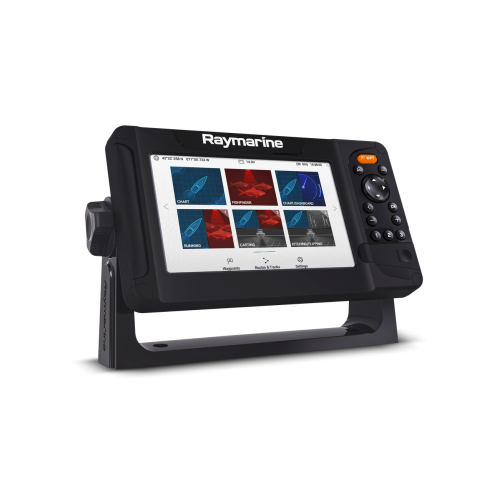

ECHOLOTAI ELEMENT 7 HYPERVISION

Ypatybės:

• Echolotas „Raymarine“ Element 7-7" su CHIRP sonaru, HyperVision funkcija, Wi-Fi, GPS, HV-100 davikliu. Echolotas parduodamas be žemėlapių kortelės.

  Gamintojas

  Raymarine


  Matmenys

  240 x 135 x 62 mm


  Ekrano rezoliucija

  800 x 480 WVGA


  Ekrano dydis

  7.0"


  Ekrano tipas

  Neliečiamas


  Ekrano šviesumas

  1.500 nits


  Matymo kampas, °

  50 / 60 / 70 / 70 (Viršun, žemyn , kairėn, dešinėn)


  Įtampa, V

  12V DC (8V iki 16V DC)


  Svoris

  3.0 kg


  Atsparumas vandeniui

  IPX6 / IPX7


  CE sertifikatas

  Taip


  Garantija

  24 mėnesiai


  Serija ir modelis

  Element 7

• • Apie „Raymarine“ Element

  Žinios yra galia – tą supranta kiekvienas. „Element™ CHIRP Sonar / GPS“ serija iš „Raymarine“ suteikia Jums geriausią patirtį ieškant žuvų ir jų buveinių. „Element HyperVision™“ 1,2 MHz sonaro technologija rodo ryškiausią povandeninio pasaulio vaizdą, o padidinta „DownVision“, „SideVision“ ir „RealVision 3D“ serijų rezoliucija, vaizdavimo tikslumas ir žuvų identifikavimo lygis leidžia Jums aiškiai pamatyti dugno struktūras, augmeniją ir žuvis nuostabiame, realybei mažai kuo nusileidžiančiame skaitmeniniame atvaizde.

The NEW Raymarine Element CHIRP Sonar / GPS Series gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity. HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D. The 1.2 megahertz HyperVision mode is optimised for super high-resolution imagery up to 100’ (30 meters). Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters). Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft.

Bright and Rugged | Sunlight viewable displays with integrated GPS/GNSS receiver.
Superior HyperVision™ | 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
RealVision™ 3D Built-In | Accurately identify the location of ledges, channel beds, and other contour changes.
Fast Quad-Core Processor | For instantaneous chart re-draw and sharp 3D imaging.
All-in-one Transducer | Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

• • Display Size: 7.0" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Display Type: Non-Touch
  • Brightness: 1,500 nits
  • Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
  • Dimensions: 240 x 135 62mm (9.5 x 5.3 x 2.4 inches) | W x H x D
  • Product Weight (lbs):  3.0
  • Waterproof Rating: IPx6 and IPx7
  • Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
  • Storage temperature range: -30°C to +70°C (-22°F to 158°F)
  • Voltage: 12V DC (8V to 16V DC)
  • Power Consumption (max 12V DC): 15 Watts
  • GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS- 10Hz
  • Sonar Type (Built-in): Built-in CHIRP Sonar | DownVision (Standard and Hyper) | SideVision (Standard and Hyper) | RealVision™ 3D (Standard and Hyper)
  • Sonar Connection: 15 pin HyperVision™ type connector
  • Sonar Depth: CHIRP Sonar = 274m (900 feet) | DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet) | SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet) | RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
  • NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
  • Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization) | OUTPUT: GPS (for VHF Distress and DSC)
  • SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
  • Wi-Fi: WiFi - 802.11 b / g / n
  • BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
  • Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
  • Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
  • Waypoint | Routes | Tracks: 10,000 wpts / 200 wpt groups | 150 rts - 250 wpt max | 16 tracks - 10,000 max trk pts
  • Internal Memory: 8GB Solid State
  • External Memory: 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

PASTABA: formuodami užsakymą norimos prekės modelį prašome nurodyti pastabose arbe el.pastu info@spiningavimas.lt.
