| SKU | 9420064138951 |
| Brand | Lowrance |
| Model | LIVE-AT2XL-SYSTEM |

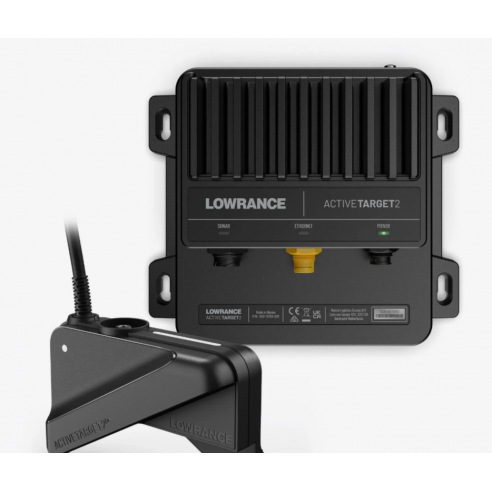

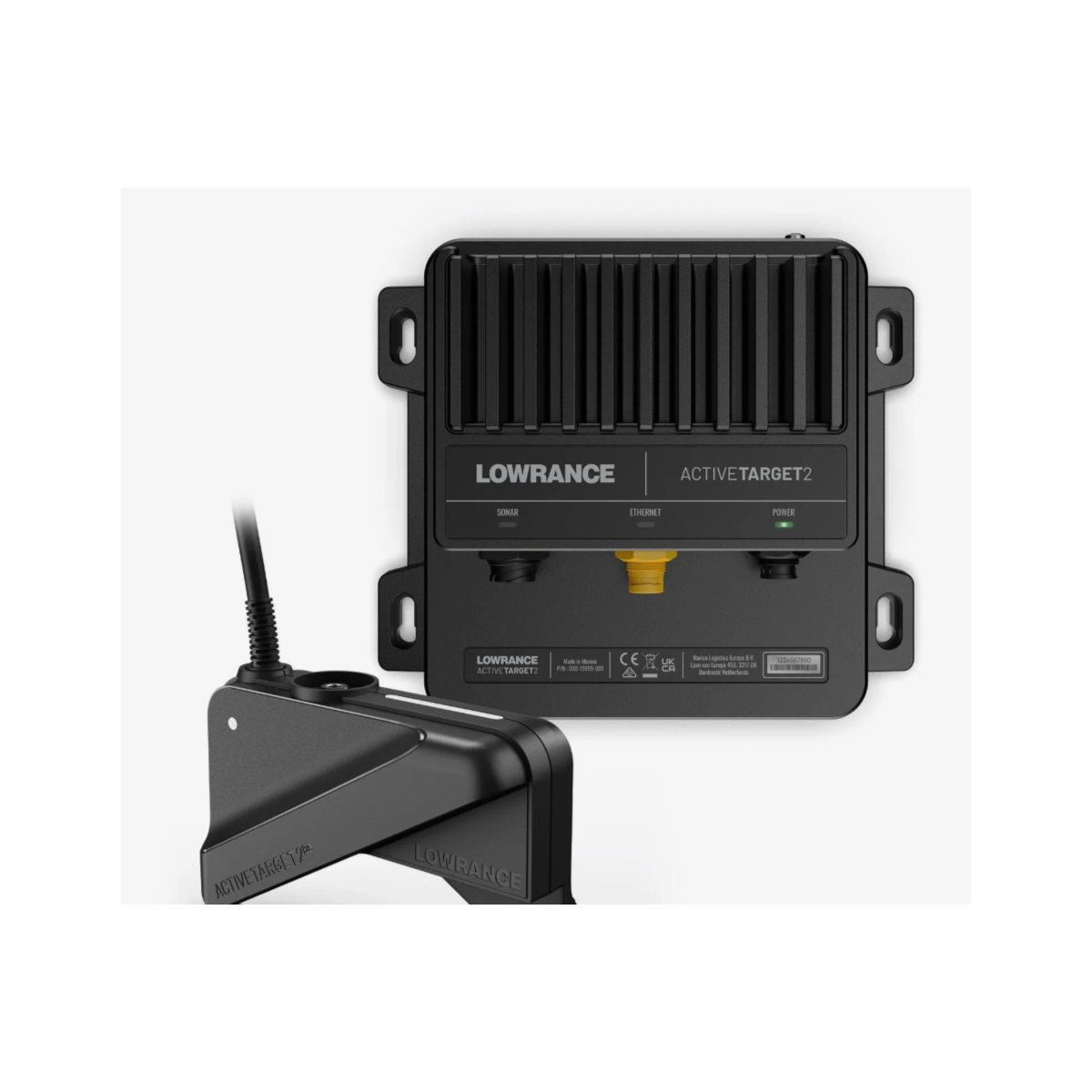

The Lowrance Active Target 2 XL live sonar package takes your fishing experience to a whole new level with an unmatched 180° real-time view. With the new XL transducer, you can see the entire water column – from lure drop to strike. The package includes the transducer, module, power cable, and a 4.5 m Ethernet cable, and is fully compatible with HDS® Carbon, HDS® Live, HDS® Pro, and Elite® FS units.
Full coverage with 180° live view
The Active Target 2 XL transducer maximizes your screen space and delivers a uniquely wide live view in Forward XL, Down XL, and Scout XL modes. Track your lure’s movement, the fish’s reactions, and the moment of the strike with outstanding accuracy – no need to adjust the transducer or guess where the fish are.
Wide field of view reveals the entire underwater landscape
With a 180° live image from surface to bottom, both forward and downward, Active Target 2 XL offers complete visibility. Forward XL provides a wide view in front of the boat, Down XL covers the area directly below, and Scout XL gives an overhead angle – perfect for tracking fish and lures. All modes work together to create a crystal-clear anti-coupling display for full situational awareness.
Easy upgrade and seamless compatibility
Active Target 2 XL works with the existing ActiveTarget 2 Module, making the upgrade simple – just swap the transducer and plug it in. The package is fully compatible with HDS® PRO, HDS® Live, HDS® Carbon, and Elite® FS units. A fast, cost-effective solution with no need for extra accessories.
360° live view available with dual transducers
By using two Active Target 2 XL transducers with an HDS® PRO unit, you get access to the market’s first 360° Scout XL live view. It offers complete coverage around your boat without needing to move. Scout mode also quickly shows deeper and shallower water – helping you cast with pinpoint precision.
Quick mode switching without interrupting your fishing
The updated design of the Active Target 2 XL transducer allows you to switch between Forward XL and Down XL directly from the screen. Changing to Scout mode is now easier thanks to a new mount. Swap views on the go and stay focused on the fish.
Features
• 180° live sonar – the clearest and most comprehensive live view on the market
• Forward XL, Down XL, and Scout XL modes – wide-angle viewing in every direction
• Optional 360° Scout XL with dual transducers (HDS® PRO required)
• Compatible with Lowrance devices: HDS® PRO, HDS® Live, HDS® Carbon, and Elite® FS
• Works with existing ActiveTarget® 2 Module
• Fast view switching on-screen – no manual adjustment needed
• Easy to install and operate
• Quick-reference markers in Scout mode
• 4.5 m Ethernet cable included for flexible mounting
• Modular package with transducer, module, and power cable
Technical Specifications
• Frequency: 650–1300 kHz
• Max depth: 60.96 m
• Sonar cone: 20° × 180°
• Power consumption: max 2.2 A @ 10.8 VDC / typical 1.5 A @ 13.8 VDC
• Recommended fuse: 5 A
• Operating voltage: 10.8 – 31.2 VDC
• Temperature range: Module –15 °C to 55 °C / Transducer (water) 0 °C to 35 °C
• IP rating: IP67
• Module dimensions: 219.3 × 192.1 × 72.9 mm
• Transducer dimensions: 179.9 × 113.6 × 68 mm
• Weight: Module 1.86 kg / Transducer 1.61 kg
• Warranty: 2 years + 3-year service/upgrade program
