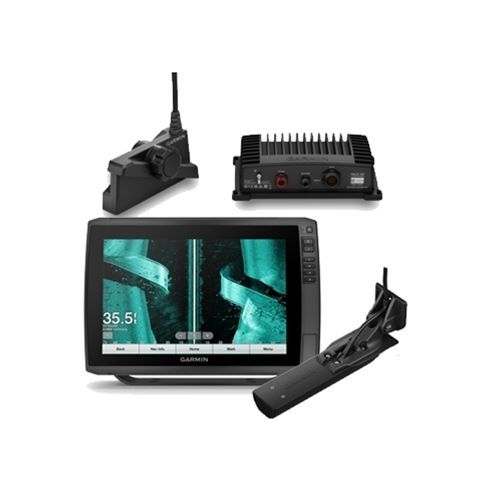

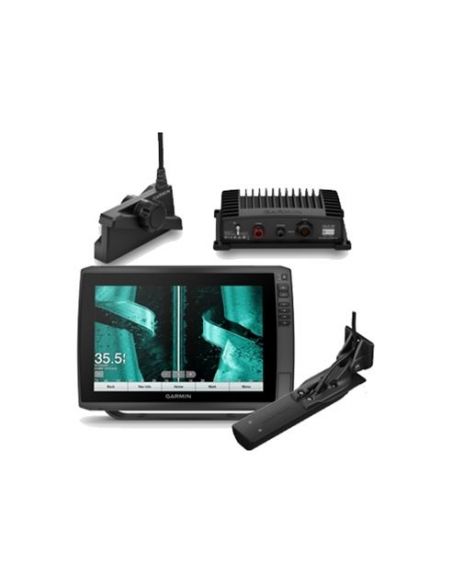

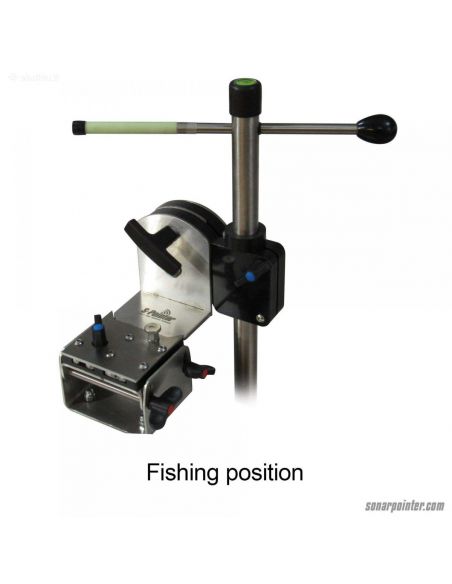

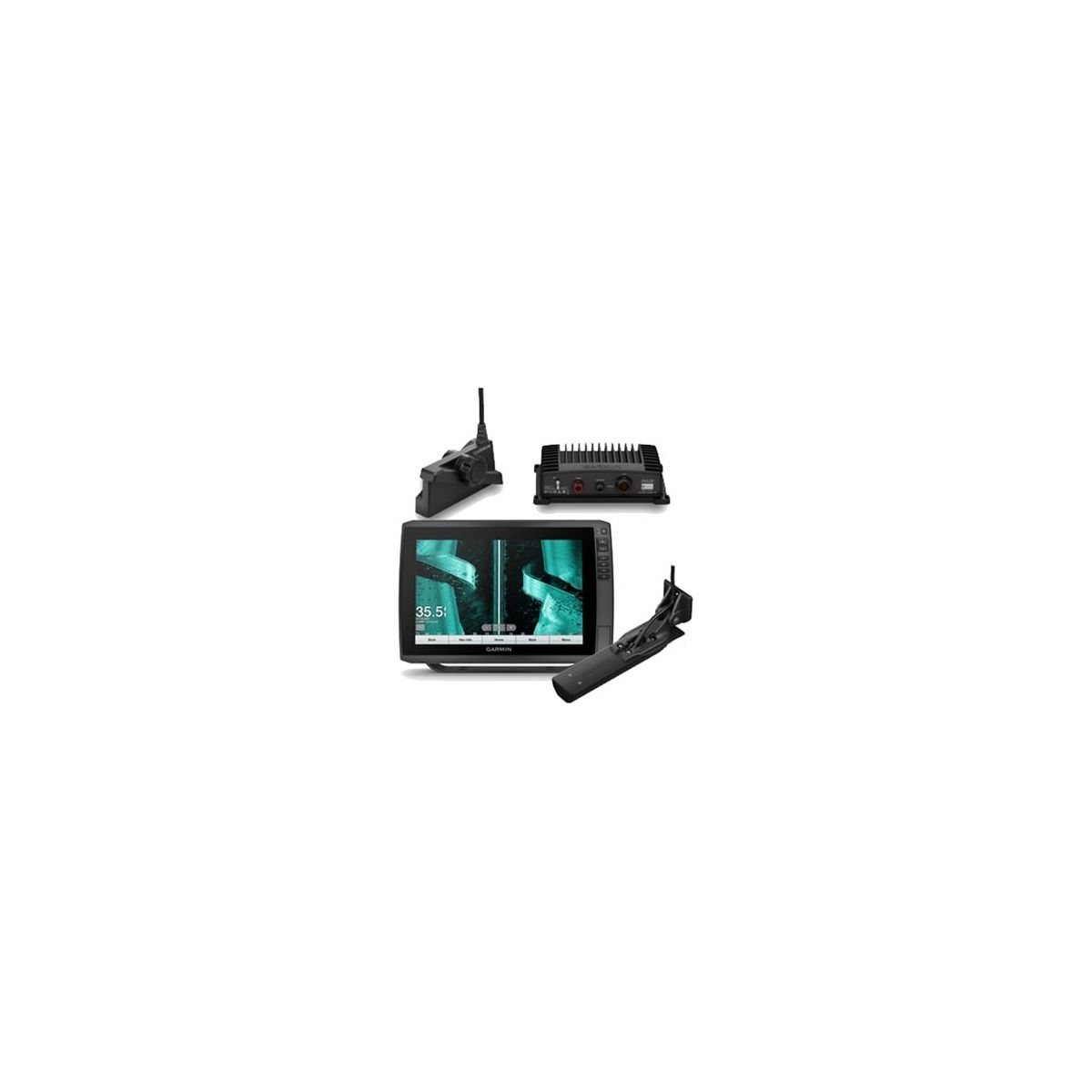

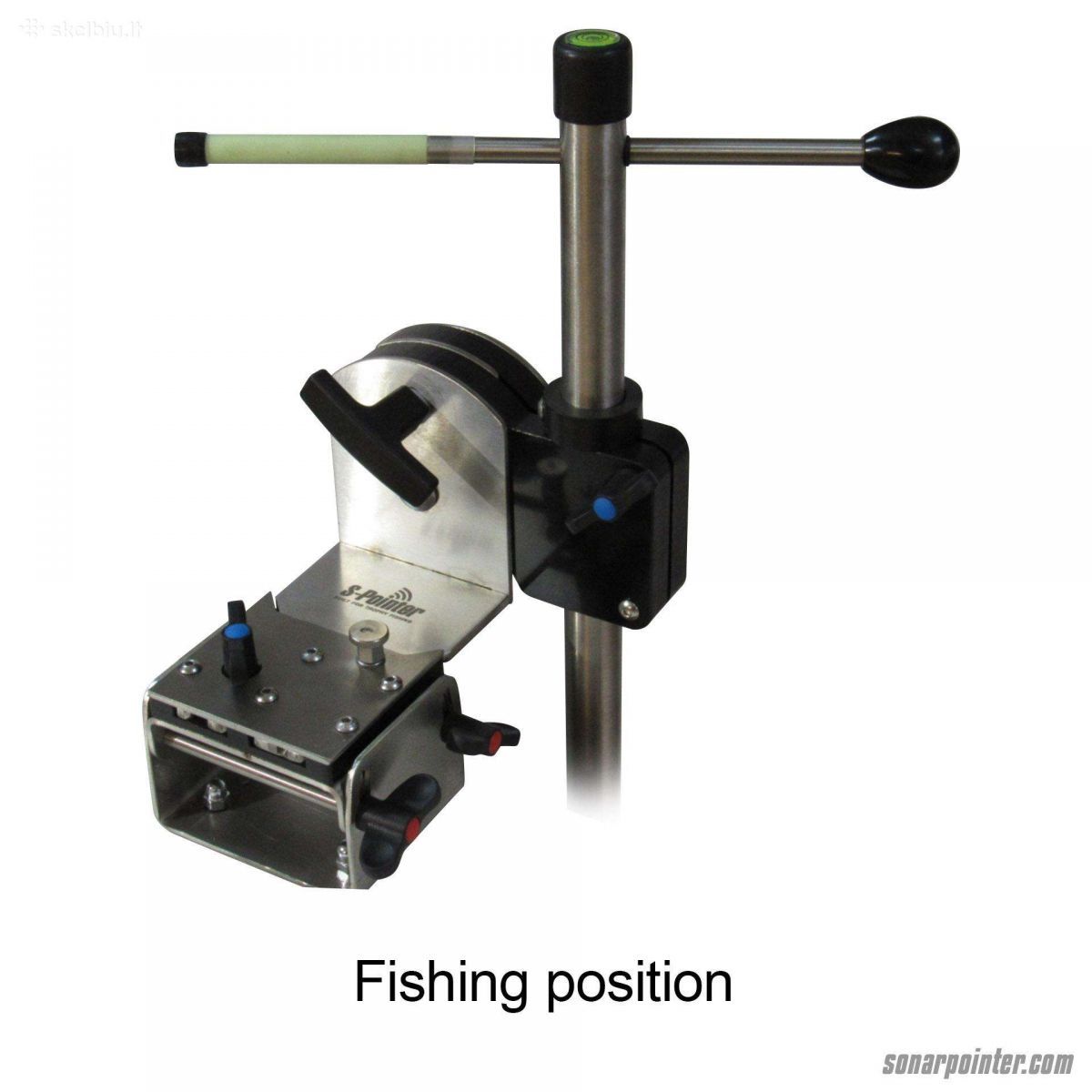

KOMPLEKTAS GARMIN ECHOMAP ULTRA2 122SV SU GT 56 SONARU+ LIVESCOPE LVS34 AND GLS10 SYSTEM+Livescope rankinis Rotatorius Sonar Pointer
The sunlight-readable 12” touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
 |
 |
 |
 |
 |
 |
| The keyed-assist 12” touchscreen puts fishfinding know-how at your fingertips. | See crisp images of structure and fish in stunning detail. | Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps. | Manage your marine experience from nearly anywhere with the ActiveCaptain® app1. | Connect your boat to share data, sonar and charts with your other compatible devices. | Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs. |
ECHOMAP Ultra2 122sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
|
Code |
Name |
|
|
010-02706-00 |
Panoptix LiveScope Plus System w/ LVS34 and GLS10 |
| FIZINIAI MATMENYS |
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| SVORIS |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| PRALAIDUMO VANDENIUI SKALĖ | IPX7 |
| TEMPERATŪROS INTERVALAS |
GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonaro funkcijos ir specifikacijos |
|
| PALAIKOMI DAŽNIAI | 530 - 1,100 kHz |
|---|---|
| MAKSIMALUS GYLIS | Down and Forward: 200’ (61.0 m) |
Kontaktai |
|
| „GARMIN MARINE NETWORK ™“ PRIEVADAI |
1 (small connector) |
|---|---|
Elektriniai įrenginiai |
|
| MAITINIMO ĮVESTIS | 10-32 V |
|---|---|
| ENERGIJOS SUNAUDOJIMAS | 21 W typical, 58 W max |
| PERDAVIMO GALIA | 500 W |
| SAUGIKLIS | 7.5 A |
| SAUGUS ATSTUMAS IKI KOMPASO | 4" (0.1 m) |
KOMPLEKTACIJA:
