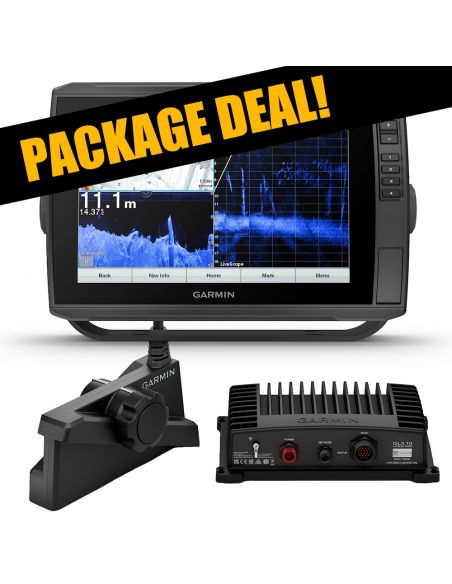

KOMPLEKTAS GARMIN ECHOMAP ULTRA 102SV+ LIVESCOPE LVS34 AND GLS10 SYSTEM
Prekė yra
2 797,10 € 3 370,00 € -17%
Su mokesčiais Pristatymas iki 7 darbo dienų
KOMPLEKTAS GARMIN ECHOMAP ULTRA 102SV BE GT56 SONARO+ LIVESCOPE LVS34 AND GLS10 SYSTEM

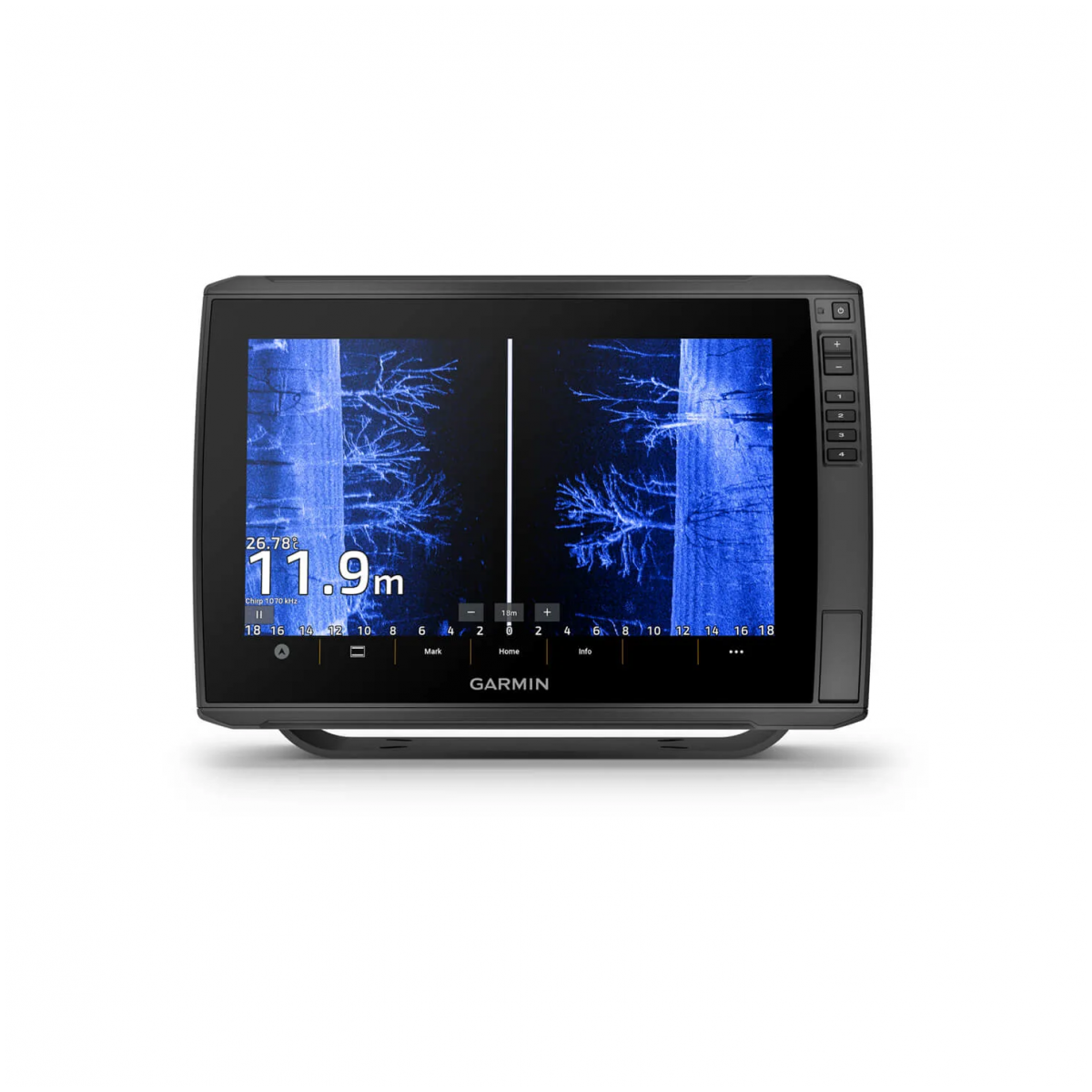

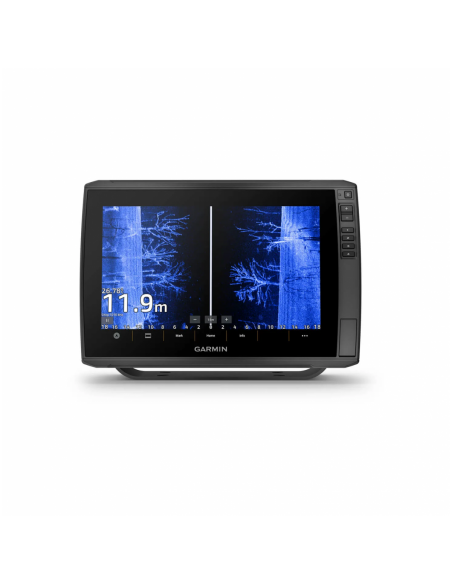

Garmin ECHOMAP Ultra 102sv be sonaro
The sunlight-readable 10” touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
 |  |  |  |  |  |
| The keyed-assist 10” touchscreen puts fishfinding know-how at your fingertips. | See crisp images of structure and fish in stunning detail. | Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps. | Manage your marine experience from nearly anywhere with the ActiveCaptain® app1. | Connect your boat to share data, sonar and charts with your other compatible devices. | Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs. |
Better fishing comes built-in.
LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra 102sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).
BUILT-IN UHD SONAR
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
ADD CHARTS
Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.
QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
Stay connected on and off the water.
NETWORK CAPABLE
If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.
NMEA 2000® NETWORK COMPATIBILITY
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
FORCE™ TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
TAKE IT WITH YOU
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and
Garmin Panoptix LiveScope Plus System w/ LVS34 and

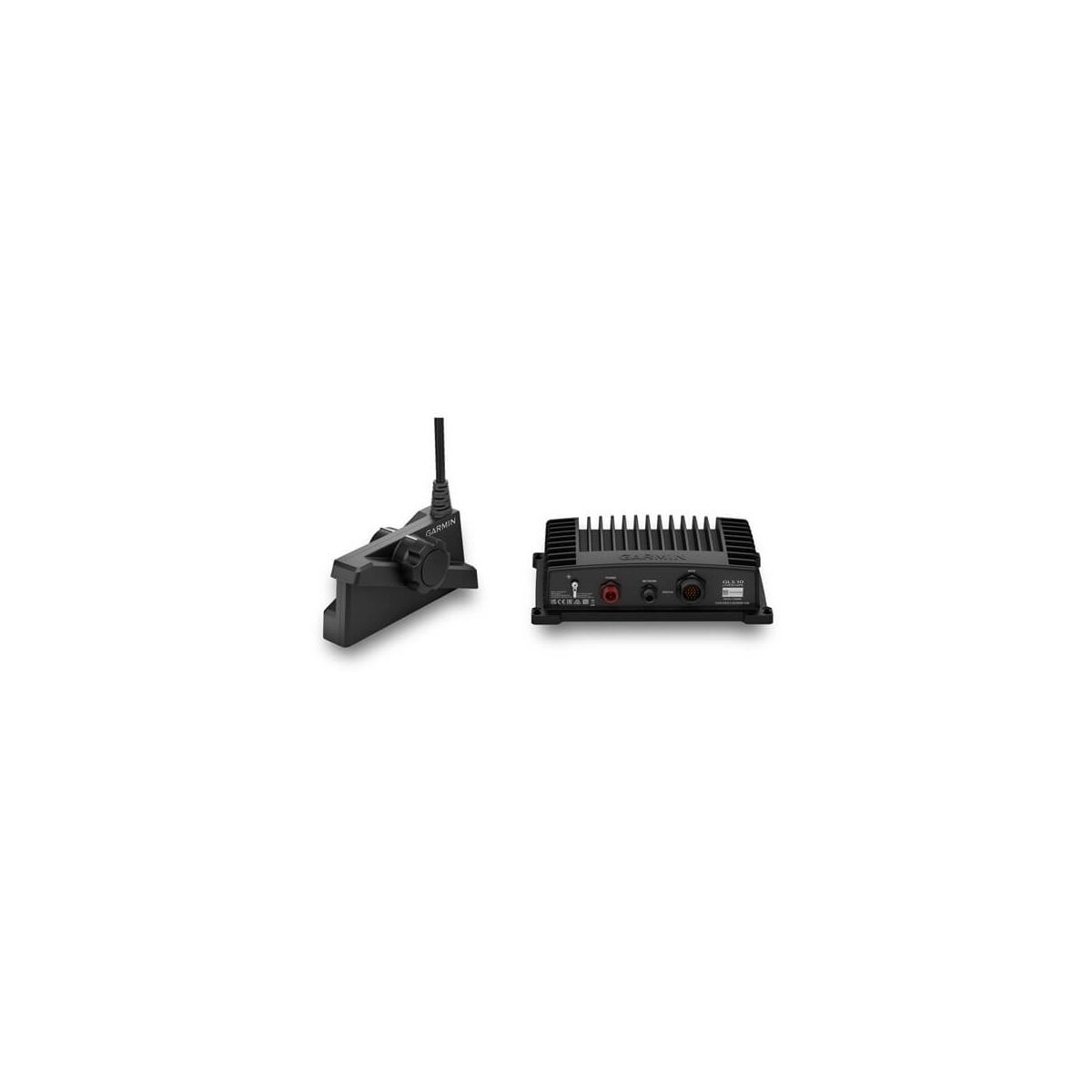

GARMIN PANOPTIX LIVESCOPE PLUS LVS34 AND GLS10 SYSTEM
Code | Name | |
010-02706-00 | Panoptix LiveScope Plus System w/ LVS34 and GLS10 |
| FIZINIAI MATMENYS | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| SVORIS | GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| PRALAIDUMO VANDENIUI SKALĖ | IPX7 |
| TEMPERATŪROS INTERVALAS | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonaro funkcijos ir specifikacijos | |
| PALAIKOMI DAŽNIAI | 530 - 1,100 kHz |
|---|---|
| MAKSIMALUS GYLIS | Down and Forward: 200’ (61.0 m) |
Kontaktai | |
| „GARMIN MARINE NETWORK ™“ PRIEVADAI | 1 (small connector) |
|---|---|
Elektriniai įrenginiai | |
| MAITINIMO ĮVESTIS | 10-32 V |
|---|---|
| ENERGIJOS SUNAUDOJIMAS | 21 W typical, 58 W max |
| PERDAVIMO GALIA | 500 W |
| SAUGIKLIS | 7.5 A |
| SAUGUS ATSTUMAS IKI KOMPASO | 4" (0.1 m) |
- Minimum depth: 3' (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
KOMPLEKTACIJA:
- LiveScope GLS 10 sonar black box
- Keitiklis „Panoptix LVS34“
- Tvirtinimo elementas perspektyvinio vaizdo režimui
- Tvirtinimo prie velkiavimo variklio korpuso elementas
- Tvirtinimo prie stovo elementas
- Maitinimo kabelis
- 2 metrų ilgio „Garmin Marine Network“ tinklo kabelis (maža jungtis)
- Tinklo adapterio kabelis
- Dokumentacija
