Code: 010-02879-01
Barcode: 0753759325497
product label: Garmin
screen size: 10"
Sonar: GT56UHD-TM Transducer
Code: 010-02879-00
Barcode: 0753759325480
product label: Garmin
screen size: 10"
Sonar: Without Transducer

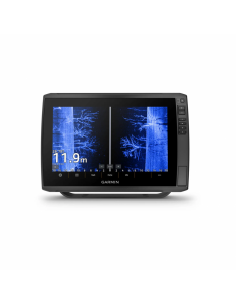

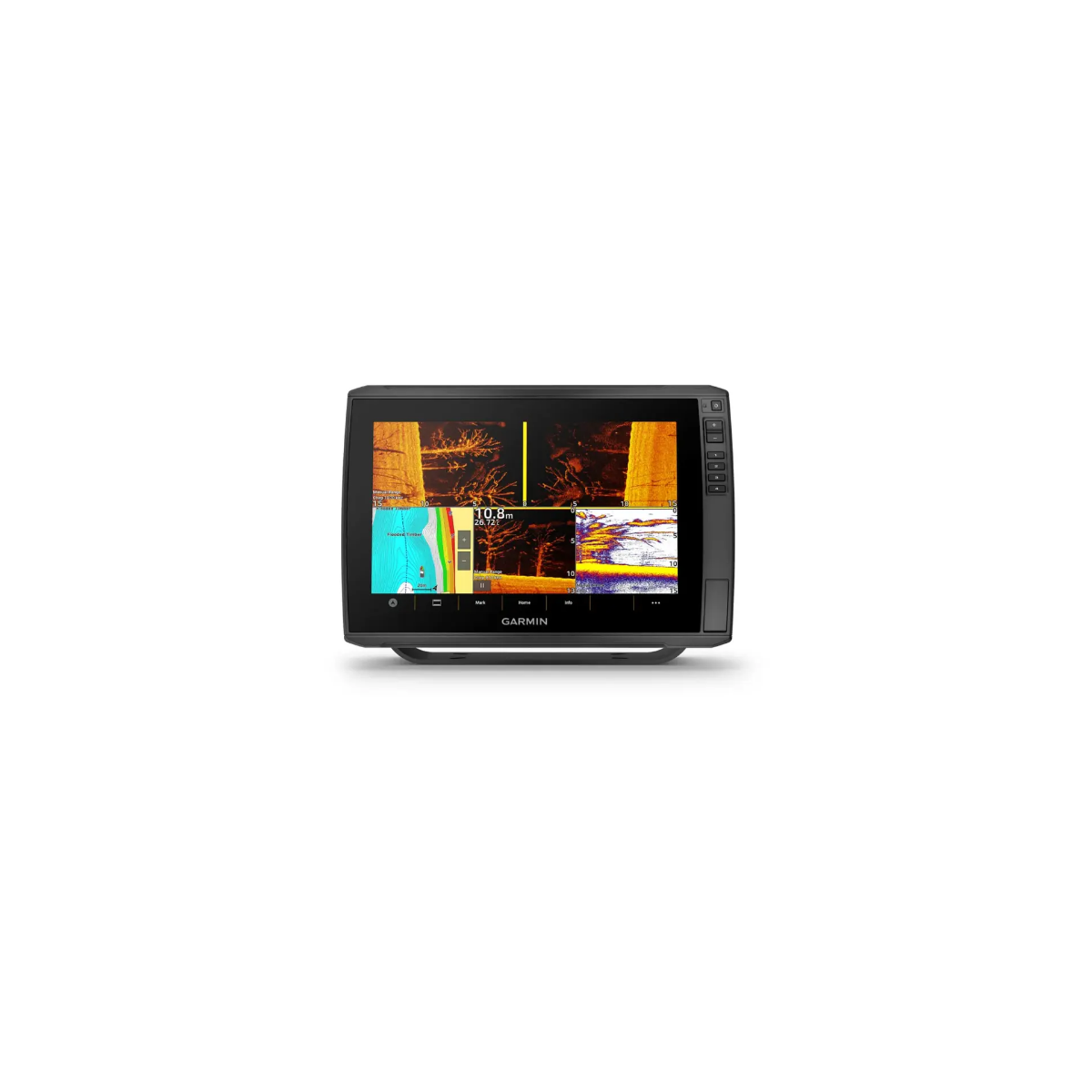

Large, light, sun-catching echolots Garmin ECHOMAP Ultra 2 102 sv with GT56UHD-TM touchscreens ensure universal chartered workshops with a wide range of fishing opportunities. They support Garmin Navionics+TM and Garmin Navionics Vision+TM ™maps, and the out-of-life recesses are complemented by ultra-high-resolution scanning sonars and traditional CHIRP sonar.
10′′ OR 12′ TOUCH SCREENS
LIVESCOPETM SONAR 1 1AND NOT JUST SUPPORT
GARMIN ™NAVIONICS+TM AND GARMIN NAVIONICS VISION+TM MAPS SUPPORT
WIRELESS SINGLE SINGLE-SINGING 2
RECORDING OF SCREEN RECORDINGS TO SHARE YOUR CATCHES
ROAD CRIME BAND GPS FOR BETTER LOCAL DETERMINATION ACCURACY

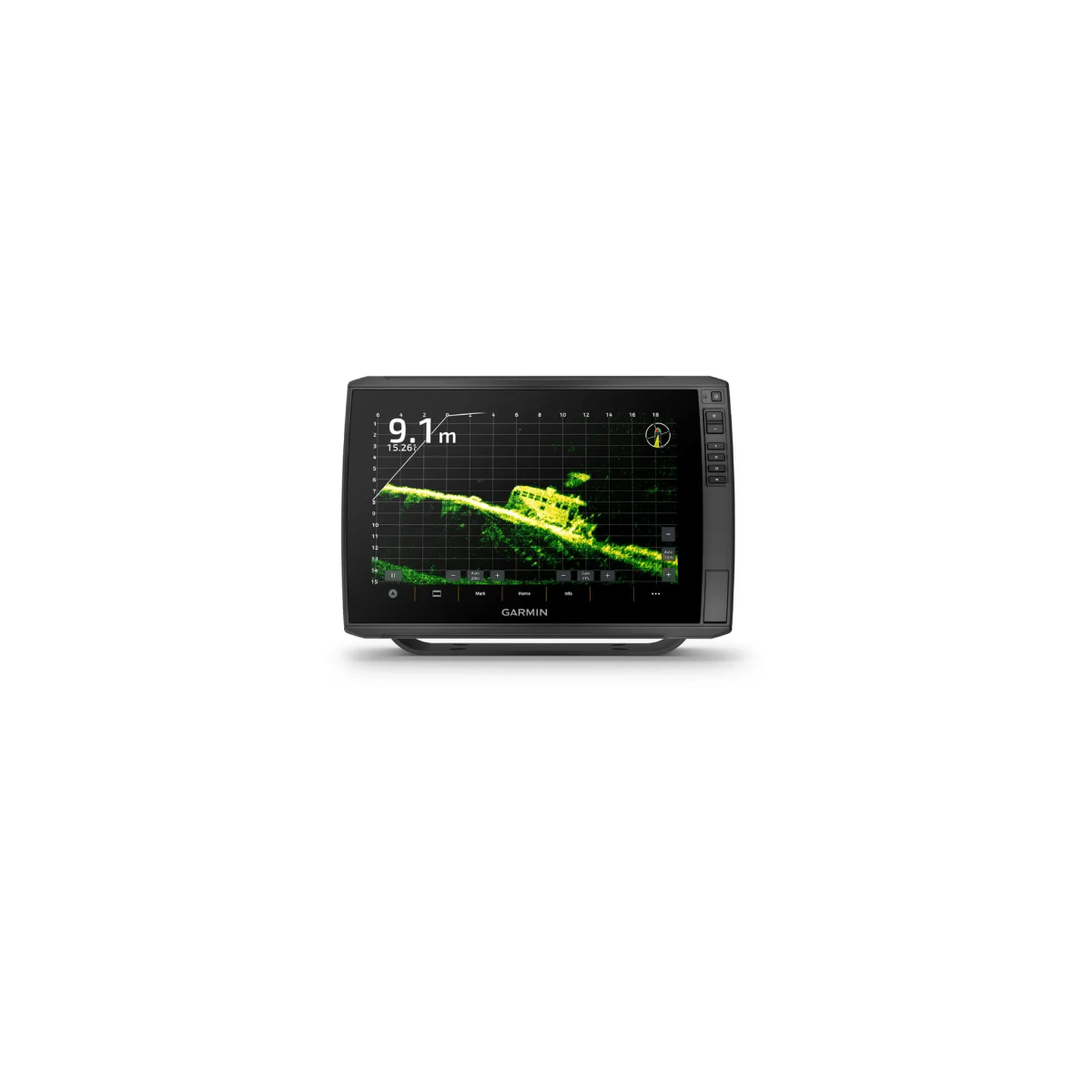

The ECHOMAP Ultra 2 series supports the entire LiveScope direct scanning sonar product range (transformers are sold separately).

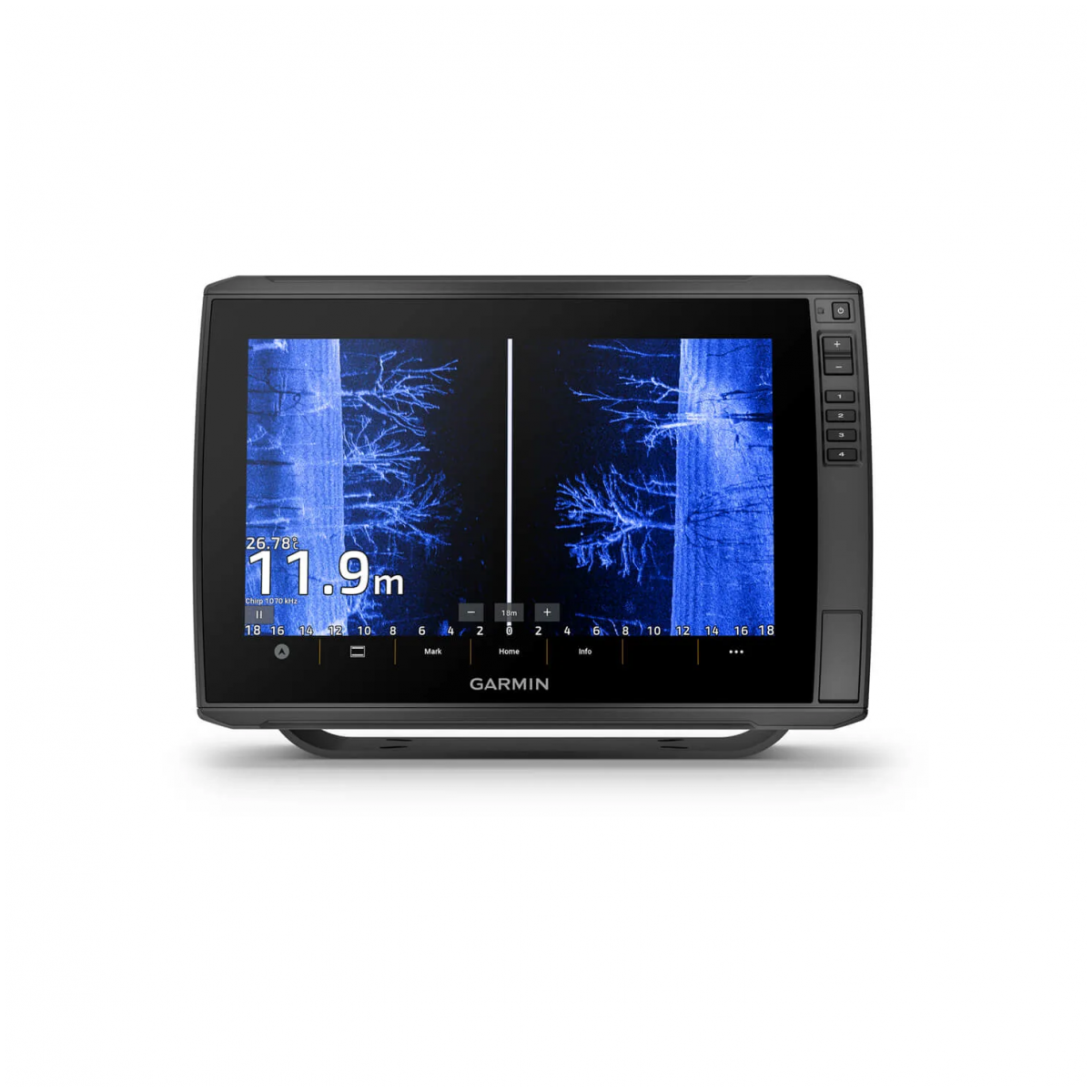

Certain models come with the GT56 converter, which provides Garmin CHIRP traditional sonar and ultra-high-resolution scanning sonars ClearVüTM ™and ™SideVüTM to capture photos reminiscent of images underwater.
Contrasting and bright color palettes of the scanning sonar help to distinguish objects and structures as easily as ever.
Give your cartoplace a new look and style with the optional Garmin Navionics+TM ™or Premium-class Garmin Navionics Vision+TM with integrated capfront and land map content, access to everyday updates, Auto Guidance+TM technology, and more.
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 charter on board, you can wirelessly share information such as sonar 3, road dots and routes between devices.
Enjoy higher positioning accuracy with multi-speed tape GPS
Connect to direction sensors, autopilots, Fusion-LinkTM ™audio systems and more.
Connect with the free smart device app to update the software, record the screen, get Garmin QuickdrawTM Community data, and not just 4.
Connect wirelessly to the Force towed motor to take the ship to the route points, scratch and follow the routes and not only.
The easy-to-disconnect the bracket allows you to install and remove the device quickly.
| Common | |
| PHYSICAL DIMENSIONS | 29.5 x 19.5 x 9.8 cm (11.6′′ x 7,7′′ x 3,9′′) |
| WEIGHT | 1.8 kg (4 lbs) |
| WATER RESISTANCE CLASS | IPX7 |
| TOUCH SCREEN | yes |
| SCREEN TYPE | WXGA, IPS |
| DISPLAY SIZE | 21,7 x 13,6 cm; diameter of 21,7 cm (8,5′′′ x 5,4′′; diameter 10′′) |
| SCREEN DIFFERENCE ABILITY | 1280 x 800 pixels |
| INSTALLATION OPPORTUNITIES | Articulated or inducted |
| KEY AID BUTTONS | Touch screen with buttons |
| Maps and memory | |
| DATA CARDS CAN BE USED | 2 microSD cards |
| ROAD POINTS | 5000 |
| OBSERVATION POINTS | 50,000 |
| TRACKS | 50 saved pistes |
| ROUTES | 100 |
| Sensors | |
| GPS | yes |
| GLONASS | yes |
| Galileo | yes |
| BEIDOU | yes |
| INTEGRATED RECEIVERS | yes |
| RECEIVER | 10 Hz |
| COMPATIBLE WITH NMEA 2000® | yes |
| SUPPORTED BY WAAS | yes |
| SUPPORTS MULTI-FREQUENCY STRIPES, MULTI-SATELLITE GROUPS GPS | yes |
| Optional map support | |
| BLUECHART G3 | yes |
| BLUECHART G3 VISION | yes |
| GARMIN NAVIONICS+ TM | yes |
| GARMIN NAVIONICS VISION+ TM | yes |
| TOPO 100K | yes |
| STANDARD MAPS | yes |
| GARMIN QUICKRAW CONTOURS | yes |
| Carplore functions | |
| SUPPORTS AIS (LOUDING THE SITUATION OF THE SPECIFIED SHIP) | yes |
| SUPPORTS DSC (SHE SHOWS THE POSITION FROM DSC-SOLUBLE VHF RADIO) | yes |
| SUPPORTS FUSION-LINK TM COMPATIBLE RADIO RECEIVER | yes |
| COMPATIBLE WITH ACTIVECAPTAIN | Yes |
| SAILING FUNCTIONS | yes |
| Electrical equipment | |
| CATERING INPUT | From 9 to 18 Vdc |
| TYPICAL SUPPLY CURRENT AT 12 V NS | 2.3 A |
| MAKS. SUPPLY CURRENT AT 12 V NS | 5:00 AM |
| MAKS. ENERGY CONSUMPTION AT 10 V NS | 34 W |
| Sonar features and specifications | |
| RODOM SYNAR | yes |
| REWARDING POWER | 600 W |
| CONVENTIONAL SONAR (DOUBLE FREQUENCY / FIBER) | Integrated (one-channel HIRP, 70/83/200 kHz, L, M, H CHIRP) |
| "CLEARVÜ" | Built-in 260/455/800/1,000/1 200 kHz |
| "SIDEVÜ" | Built-in 260/455/800/1,000/1 200 kHz |
| PANOPTIX TM SONAR | yes |
| "LIVESCOPE" | yes |
| | |
| Contacts | |
| NMEA 2000® PORTS | 1 |
| GARMIN MARINE NETWORKTM PERFORMANCES | 2 (large connector) |
| 12 NETTLE GUIDANCE PORTS | 12-pin scanning sonar |
| AN + TM ( CONNECTION) | yes |
| GARMIN WI-FI® NETWORK (LOCAL CONNECTION) | yes |
